How do I connect the Valor VP550E terminal to the internet?

To connect your VP550E to the Internet: Go to the Home Screen, then tap the MAIN MENU ICON. Select SETTINGS, then WIFI CONFIG Select SSID Input the WiFi Password (case sensitive) Select CONNECT

How do I change the settings on the Valor VP550E terminal?

To configure the settings for your VP550E: Go to the Home Screen, then tap the MAIN MENU ICON. Scroll down and tap SETTINGS From here, you can select SERVER/CLERK, CHANGE PASSWORD, WIFI CONFIG, SIM SIM CONFIG, and UTILITIES.

What’s the difference between Valor VP550E and Valor VP550?

While the VP550 and VP550E are similar in function, they have a few key hardware differences that may impact your choice depending on your business needs: Printer: VP550: Built-in thermal printer VP550E: No built-in printer Battery: VP550: 7.2V / 2600mAh (equal to 3.6V / 5200mAh) VP550E: 3.8V / 3600mAh Connectivity & Slots: VP550: Dual SIM, dual SAM, 1 x SD card slot VP550E: Single SIM, single SAM (no SD slot) Security Processor: VP550: ARMv7-M core VP550E: Cortex-M3 core Contactless Reader: Both models support EMV Contactless L1 and standards like ISO 14443 Type A/B, Mifare, and Felica VP550E: Features an under-screen contactless reader Keypad & Buttons: VP550: Volume + and Volume – buttons VP550E: Two function buttons and five pogo pins Size & Dimensions: VP550: Larger and thicker (7.9″ x 3.1″ x 2.4″) VP550E: Slimmer design (5.9″ x 2.9″ x 0.7″)

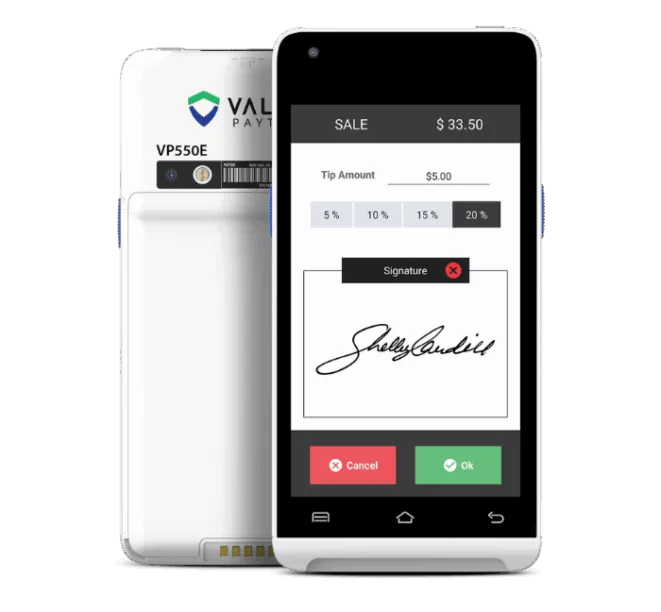

Valor VP550E

$ 340.00

Dedicated Support Team

The future of payment technology is here with this eco-friendly POS solution. Running on the Android 12 OS, the VP550E includes familiar, user-friendly smartphone features. This sustainable POS hardware offers digital e-receipts and flexible payment options, including contactless, mag-stripe, and digital wallet payments. Enhance the payment experience with the VP550E!

Capacitive LCD full color multi-touch screen
Electronic signature capability
Triple-track, bi-directional magnetic card reader
4G / 3G / 2G | WIFI Bluetooth 5.0 connectivity options
Secure virtual keypad

5” Touchscreen

The VP550E offers a 5” full-color LCD with a capacitive multi-touch screen and a resolution of 1280 x 720.

Fee recovery methods

The VP550E offers cash discounting, dual pricing, and surcharging programs to account for payment processing fees.

Multi-connectivity options

Connect through Wi-Fi, 5G/ 4G / 3G / 2G, or Bluetooth.

Compact

At only 245g with dimensions of 5.9” x 2.9” x 0.67”, the VP550E is highly portable.

Long-lasting battery

The 3.8V/3600mAh/13.68Wh Li-ion battery lasts longer than ever without constant recharges.

PCI PTS 6.x Certified

6.x is the most recent version of the PCI PTS Point of Interaction, giving the VP550E the latest in payment card industry compliance.

With its 5” full-color capacitive multi-touch screen, fee recovery methods, and multi-connectivity options including Wi-Fi, 5G/ 4G / 3G / 2G, or Bluetooth, this eco-friendly POS is lightweight and adaptable enough to carry anywhere you need to do business. Don’t worry about running out of battery while you’re on the go either, our long-lasting battery ensures your device stays running as long as you need it to. The sustainable VP550E is up-to-date in the latest security standards, keeping your and your customers’ data safe throughout each step of the transaction process.

Valor VP550E Technical Specification

User Manual

Spec Sheet

Operating System

Android 12

Size

5.91" (L) × 2.91" (W) × 0.66" (H), and a total weight of 8.64 oz (including the 3600mAh battery).

Connection

4G / 3G / 2G | WIFI (802.11 a/b/g/n) 2.4G & 5G | Bluetooth 5.0

Card Reader Types

Magnetic Card Reader, Contactless Card Reader, and Smart Card Reader

Power Source

Input: 100-240V AC 50/60Hz Output: 5.0V DC, 2.0A

Processor

Cortex Quad-core A53, 2.0GHz

Ports

1 x Type C port (OTG); 1 x SIM, 1 x SAM

Memory

16GB /2GB Flash/RAM; (Up to 256 GB) Micro-SD Socket

Camera Specs

0.3 MP front camera, support 1D/2D code payment 5MP autofocus rear camera, support 1D/2D code payment

Printer Specs

N/A

Screen

5-inch TFT full color LCD display, resolution of 1280 x 720, capacitive multi-touch screen, support electronic signature

Battery Specs

Li-ion battery, 3.8V/3600mAh/13.68Wh

Battery Life

Approximately 8 - 12 hours.

Developer

Valor

Third-party payment (s)

Google Pay, Apple Pay, Android Pay, Samsung Pay, Visa PayWave, Mastercard PayPass

Compatible Platform (s)

TSYS

Certifications

PCI PTS 6.x, EMV L1/L2, EMV Contactless L1, PayPass, payWave, American ExpressPay, Discover D-PAS, UnionPay QuickPass, TQM, CE, CB, RoHS, JCB, Felica, FCC

Frequently Asked Questions

The VP550E does not come with a printer, instead offering eco-friendly digital e-receipts.

To connect your VP550E to the Internet:

Go to the Home Screen, then tap the MAIN MENU ICON.
Select SETTINGS, then WIFI CONFIG
Select SSID
Input the WiFi Password (case sensitive)
Select CONNECT

The VP550E uses a Li-ion battery, 3.8V/3600mAh/13.68Wh.

To configure the settings for your VP550E:

Go to the Home Screen, then tap the MAIN MENU ICON.
Scroll down and tap SETTINGS

From here, you can select SERVER/CLERK, CHANGE PASSWORD, WIFI CONFIG, SIM SIM CONFIG, and UTILITIES.

The default password for your Valor VP550E is the last four digits of your EPI number, which will appear on your display after your device connects to the network.

While the VP550 and VP550E are similar in function, they have a few key hardware differences that may impact your choice depending on your business needs:

Printer:
- VP550: Built-in thermal printer
- VP550E: No built-in printer
Battery:
- VP550: 7.2V / 2600mAh (equal to 3.6V / 5200mAh)
- VP550E: 3.8V / 3600mAh
Connectivity & Slots:
- VP550: Dual SIM, dual SAM, 1 x SD card slot
- VP550E: Single SIM, single SAM (no SD slot)
Security Processor:
- VP550: ARMv7-M core
- VP550E: Cortex-M3 core
Contactless Reader:
- Both models support EMV Contactless L1 and standards like ISO 14443 Type A/B, Mifare, and Felica
- VP550E: Features an under-screen contactless reader
Keypad & Buttons:
- VP550: Volume + and Volume – buttons
- VP550E: Two function buttons and five pogo pins
Size & Dimensions:
- VP550: Larger and thicker (7.9″ x 3.1″ x 2.4″)
- VP550E: Slimmer design (5.9″ x 2.9″ x 0.7″)
